[2023] 300-510 by CCNP Service Provider Actual Free Exam Practice Test

Free CCNP Service Provider 300-510 Exam Question

Cisco 300-510 exam is an important certification for service provider network professionals. It demonstrates a candidate’s expertise in advanced routing technologies and their ability to configure and troubleshoot complex routing issues. Implementing Cisco Service Provider Advanced Routing Solutions certification is recognized globally and can open up new opportunities for career growth and development. Passing the Cisco 300-510 exam requires dedication, hard work, and a deep understanding of advanced routing technologies. However, with the right preparation and study, passing the exam is achievable.

Cisco 300-510 exam is a challenging exam that requires a thorough understanding of network technologies and protocols. 300-510 exam consists of 60-70 multiple-choice and scenario-based questions, and candidates are given 90 minutes to complete it. 300-510 exam is available in English and Japanese and can be taken at any Pearson VUE testing center worldwide.

NEW QUESTION 49
Refer to the exhibit.

Routers within the cluster are not receiving the desired prefixes. What must be done to fix the issue?

Clients in that cluster must have full mesh connectivity between eBGP peers.

No client-to-client must be disabled.

Clients in that cluster must have full mesh connectivity between iBGP peers.

No client-to-client reflection must be enabled.

NEW QUESTION 50
Refer to the exhibit.

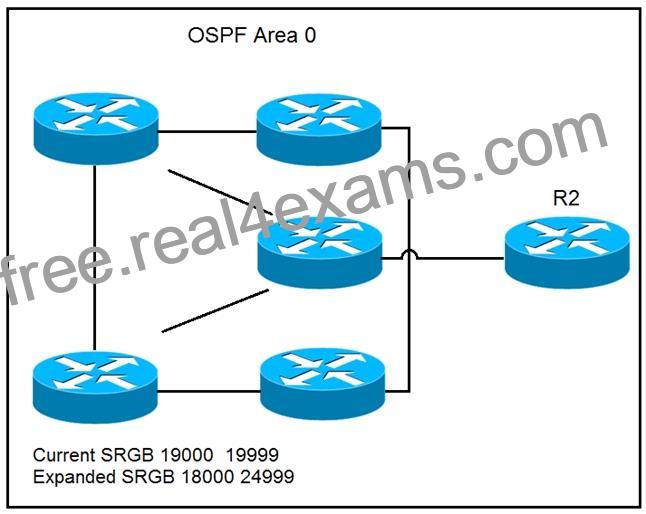

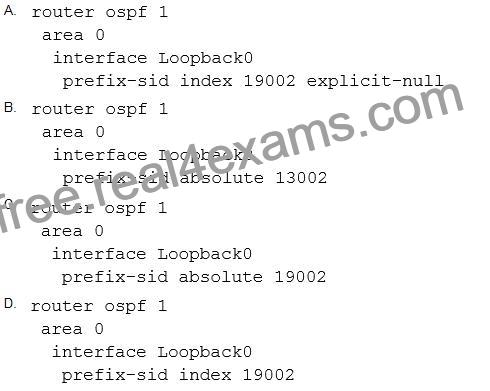

A network operator wants to expand the segment routing global block in upcoming maintenance. The operator must ensure that the changes to the segment routing global block have no adverse impacts on the prefix-sid associated with the loopback0 interface used within the OSPF domain.
Which command can the operator use to enforce R2 to have a strict prefix-sid assignment to loopback0?

Option A

Option B

Option C

Option D

NEW QUESTION 51

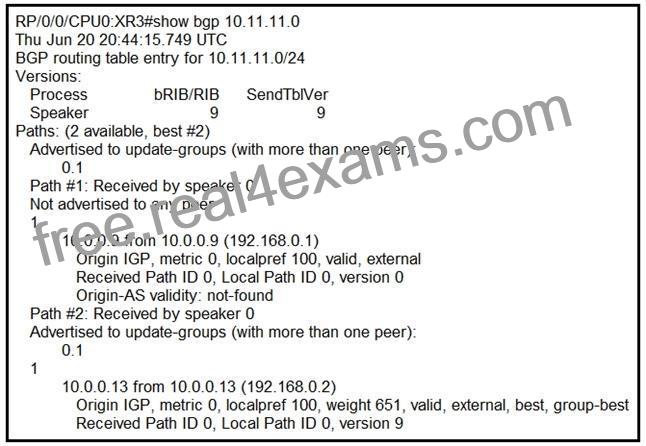

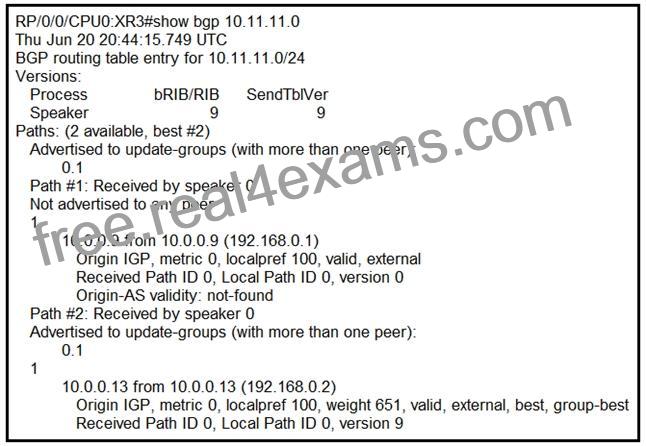

Refer to the exhibit. A network operator is getting the route for 10.11.11 0/24 from two upstream providers on #XR3.
The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available.
Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

weight of 0 on the prefix coming from 192.168.0.2

lower local preference on the prefix coming from 192.168.0.2

higher local preference on the prefix coming from 192.168.0.1

weight of 100 on the prefix coming from 192.168.0.1

NEW QUESTION 52
Refer to the exhibit.

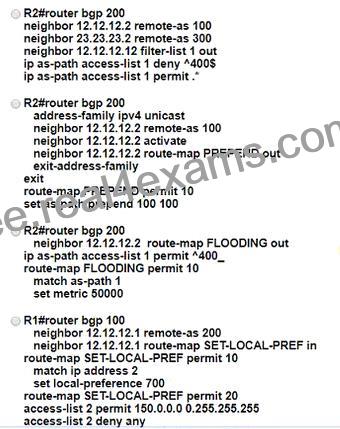

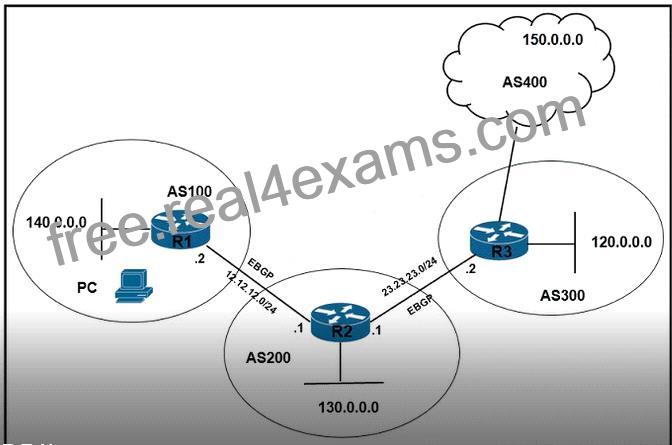

Refer to the exhibit. Excessive routes are flooding from network 150.0.0.0 into AS100. Internet traffic between AS400 and AS300 is working normally. No route controlling mechanism is applied on incoming and outgoing traffic Which configuration resolves the issue?

Option A

Option B

Option C

Option D

NEW QUESTION 53
Refer to the exhibits.

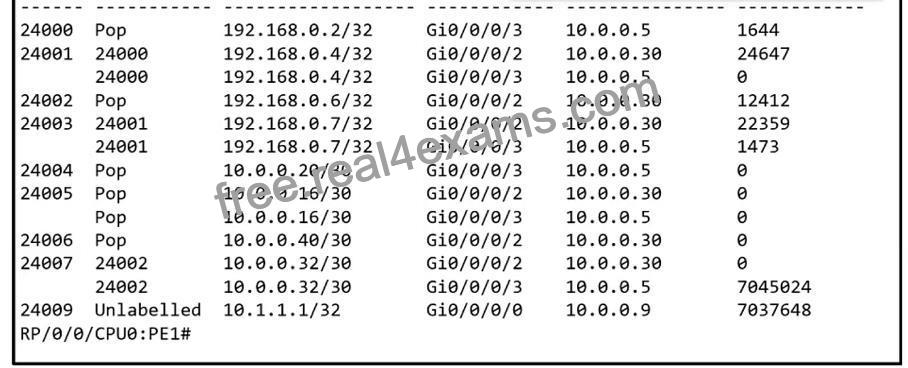

A network operator is troubleshooting packet loss seen from the R1 loopback interface to the R2 loopback interface over the core network. The operator is attempting to identify the next leg in the path from PE1.
Which interface and label path should the operator investigate next?

PE1 – Gi0/0/0/3 – forwarding label 24002

PE1 – Gi0/0/0/2 – forwarding label 24002

PE1 – Gi0/0/0/3 – forwarding label 24001

PE1 – Gi0/0/0/2 – forwarding label 24001

NEW QUESTION 54
Refer to the exhibit.

A network operator is getting the route for 10.11.11 0/24 from two upstream providers on
#XR3. The network operator must configure #XR3 to force the 10.11.11.0/24 prefix to route via next hop of 10.0.0.9 as primary when available. Which of these can the operator use the routing policy language for, to enforce this traffic forwarding path?

weight of 0 on the prefix coming from 192.168.0.2

lower local preference on the prefix coming from 192.168.0.2

higher local preference on the prefix coming from 192.168.0.1

weight of 100 on the prefix coming from 192.168.0.1

NEW QUESTION 55

Refer to the exhibit. Which effect of this configuration is true?

It sets the keepalive timer to 30 seconds and the hold timer to 240 seconds.

It sets the keepalive timer to 30 milliseconds and the hold timer to 240 milliseconds

It sets the hold timer to 30 milliseconds and the keepalive timer to 240 milliseconds

It sets the hold timer to 30 seconds and the keepalive timer to 240 seconds

NEW QUESTION 56
Refer to the exhibit.

Which task must you perform on interface g1/0/0 to complete the SSM implementation?

configure OSPFv3

enable CDP

disable IGMP

configure IGMPv3

NEW QUESTION 57
How does SRv6 function on the control plane?

It enables SRH-capable nodes to terminate IPv6 packets at the network egress to carry the SRv6 locator.

The Ingress node of the SR domain adds a uSlD format IPv6 header to carry the SRv6 locator.

The ingress node of the SR domain swaps the SRv6 header for the IPv6 header

The egress node of SR domain imposes a new outer header

NEW QUESTION 58
Which two BGP mechanisms are used to prevent routing loops when using a design with redundant route reflectors? (Choose two.)

Cluster-list

AS-Path

Originator ID

Community

Origin

NEW QUESTION 59

Refer to the exhibit. Which attribute can router 1 alter so that only other iBGP peers prefer to use 192.168.4.2 as the next hop for route 192.168.3.0/24?

MED

local preference

origin

weight

NEW QUESTION 60
Refer to the exhibit.

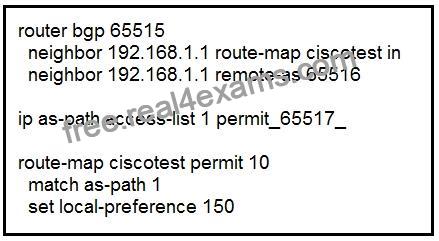

After troubleshooting BGP traffic steering issue, which action did the network operator take to achieve the correct effect of this configuration?

Routes that have passed through AS 65517 have the local preference set to 150.

Routes that have originated through AS 65517 have the local preference set to 150.

Routes directly attached to AS 65517 have the local preference set to 150.

Routes that have passed through AS 65517 have the local preference set to 150 and the traffic is denied.

NEW QUESTION 61

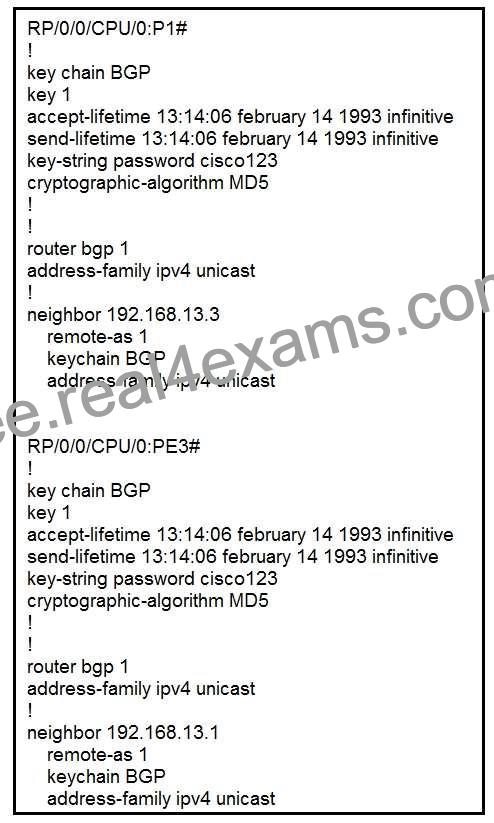

Refer to the exhibit. P1 and PE3 Cisco IOS XR routers are directly connected and have this configuration applied. The BGP session is not coming up. Assume that there is no IP reachability problem and both routers can open tcp port 179 to each other. Which two actions fix the issue? (Choose two.)

Change MD5 to HMAC-SHA1-12

Change MD5 to HMAC-ESP

Change MD5 to SHA-1

Change MD5 to HMAC-MD5

Remove the send and accept lifetime under key 1

NEW QUESTION 62
What is the role of segment routing mapping server?

It advertises a local SID mapping policy to all the mapping clients.

It works with IGP instances to calculate the prefix-SIDs in the absence of a mapping policy.

It selects multiple mapping entries to create overlapping active mapping policies.

It reads and translates remotely received SIDs from other mapping servers to create SID mapping entries.

NEW QUESTION 63
Refer to the exhibit.

Refer to the exhibit After recent configuration changes to a customer’s network, a network engineer notices that R2 cannot communicate with R3 Both FastEthemet interfaces on R2 and R3 are up and configured with the correct IP addresses MD5 password configured en R2 and R3 match with no issues What is the minimum change the engineer must make to enable R2 and R3 to communicate and fix the problem?

Configure a loopback interface on R2 and assign it to area 0.

Define area 2 as a NSSA on R2 and R3

Configure virtual links between RI and R3.

Configure interface F0/0 on RI and R2 to be in area O.

NEW QUESTION 64

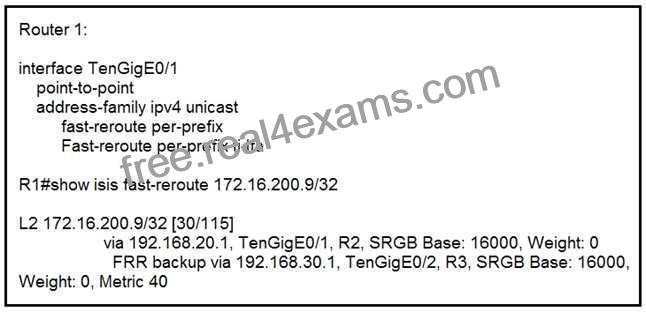

Refer to the exhibit. Router 1 is connected to router 2 on interface TenGigE0/1.
Which interface provides the alternate path to 172.16.200.9/32 when the link between router 1 and router 2 goes down?

TenGigE0/1 interface provides the alternate path

A backup path must be statically installed

TenGigE0/2 interface provides the alternate path

A primary path must be manually installed

NEW QUESTION 65
A network engineer is troubleshooting OSPF multiarea.
Which Cisco IOS XR feature should the engineer use in order to streamline OSPF issue?

hierarchical CLI

routing process enabled by default on all interfaces

DR support for topology management

show lp ospf topology command

NEW QUESTION 66
Refer to the exhibit.

How are packets directed through the data plane when SRv6 is implemented?

An ordered list of segments is encoded in a routing extension header

The MPLS data plane is used to push labels onto IGP routes

A stack of labels represents an ordered list of segments

The packet is encapsulated with a header and trailer encoding the ordered list of segments

NEW QUESTION 67
Refer to the exhibit.

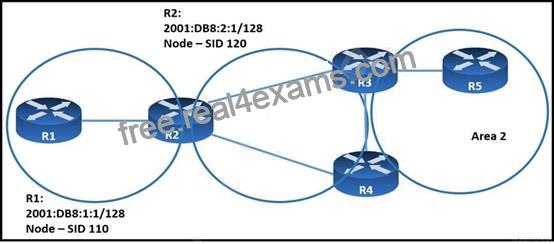

When implementing SRv6, which SID does R2 propagate into area 0 for the prefix 2001:DB8:1:1/128?

120

230

110

NEW QUESTION 68
Refer to the exhibit.

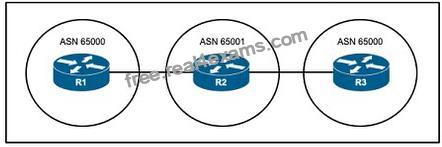

Refer to the exhibit. An engineer is troubleshooting an issue with this network and notices that prefixes from R3 are missing on the R1 routing table Due to repeated ASN when the 10 0 0 0’8 prefix from R3 arrives at R1, BGP automatically rejects it There is no prefix-list on R1 which blocks the traffic from R3 What should the engineer do to fix the problem so that BGP allows that prefix on R1?

Configure R2 as a route reflector client of R1.

Configure the allowas-in command on R1.

Configure the next-hop-self command on R2.

Configure identical confederation ASNs on R1 and R2.

NEW QUESTION 69
Refer to the exhibit.

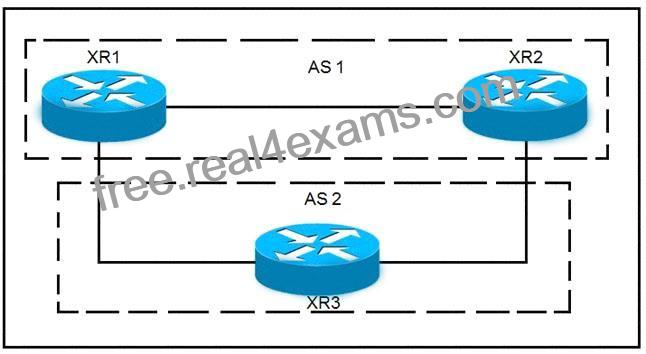

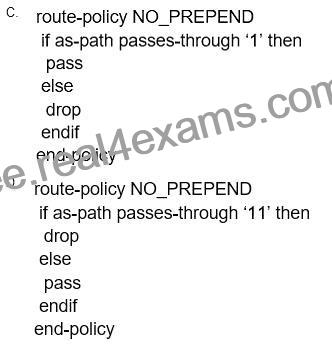

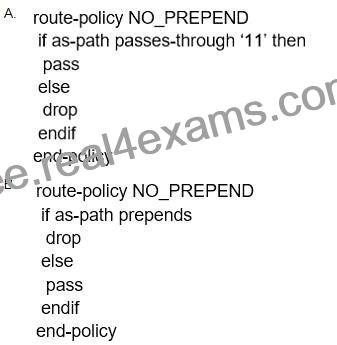

XR1 and XR2 are sending the prefix 10.11.11.0/24 to XR3. A configured policy on XR1 is incorrectly prepending AS path 11 11 12 12 onto this prefix. A network operator wants to add a policy onto XR3 that will not allow the falsely prepending prefix from being installed. Which policy configuration applied to the XR3 neighbor configuration for XR1 can accomplish this requirement without impact to other or future received routes?

Option A

Option B

Option C

Option D

NEW QUESTION 70
A network operator working for a telecommunication company with an employee id: 4074:92:707 is planning to implement the Nonstop Forwarding (NSR) feature on the customer’s core network. After getting the configuration ready for NSR. on which router should the operator implement NSR changes?

on the CE router

on the ASBR router

on the ABR router

on the PE router

NEW QUESTION 71
What are the two characteristics of route reflectors? (Choose two.)

If a router received an iBGP route with the originator-ID attribute set to its owm router ID, the route is discarded.

Routes received from nonclient peers are reflected to route reflector clients as well as nonclient peers.

Routes received from nonclient peers are reflected to route renector cluster as well as OSPF peers.

If a route reflector receives a route with a cluster-list attribute containing a different cluster ID, the route is discarded.

Routes received from a route reflector Client are reflected to other clients and nonclient peers.
