Step by Step Comprehensive Detailed Explanation:
In SRDF (Symmetrix Remote Data Facility), an “update” operation refers to a specific process where changes made on the target (R2) side are copied back to the source (R1) side. This is typically used in disaster recovery scenarios where:
* Failover:A failover occurs, and the target (R2) becomes the active production site.
* Data Modification:Data is modified or updated on the target (R2) while it’s acting as the primary.
* Update Operation:An “update” is initiated to synchronize the changes from the target (R2) back to the source (R1), ensuring that the source has the latest data.
This process is crucial for maintaining data consistency and ensuring a smooth transition back to the original production site after a failover event.
Why other options are incorrect:
* A. process to retain the data on the target R2 side:This is not specific to an “update” operation. Data retention on the target is a general aspect of SRDF.
* B. A process used to return to the original production site after a failover event:While an “update” is part of the failback process, it’s not the entire process itself. Failback involves other steps like reversing replication direction and restoring host access.
* D. A process that allows separate hosts to access the same data independently:This describes a different SRDF configuration (like Active/Active) and is not related to the “update” operation.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF commands and operations, including the symrdf update command used to initiate an update from R2 to R1. You can find this document on the Dell Support website by searching for “Solutions Enabler SRDF Family CLI User Guide.”
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a comprehensive overview of SRDF and its functionalities, including disaster recovery scenarios and the use of the
“update” operation.

https://infohub.delltechnologies.com/en-US/l/dell-emc-powermax-and-vmax-all-flash-timefinder-snapvx-local-replication-1/redirect-on-write/

See the explanation for step by step solution.
Explanation:
We need to create a secure snapshot named “Stor1” from the storage group “StorGroup1” in the Unisphere for PowerMax simulator, and the snapshot should be protected from deletion for two days.
Here’s a step-by-step guide on how to do this, based on typical Unisphere functionality:
Steps:
1. Launch the Simulator and Navigate to the Storage Groups Section
* Open Unisphere for PowerMax in your web browser.
* Log in to the simulator (you should already be logged in with the array SID 1762 selected).
* In the left-hand navigation pane, click onStorageand then selectStorage Groups.
2. Locate and Select “StorGroup1”
* In the Storage Groups view, you’ll see a list of all storage groups on the array.
* Find the storage group named “StorGroup1”.
* Click on the name “StorGroup1” to open its details view.
3. Initiate the Snapshot Creation Process
* Within the “StorGroup1” details view, look for an option related to creating snapshots or protecting the storage group. This might be a button labeled:
* “Protect”
* “Create Snapshot”
* “SnapVX”
* Or an icon representing snapshot creation.
* Click the appropriate button or icon to start the snapshot creation process.
4. Configure Snapshot Settings
* A new window or panel will appear, allowing you to configure the snapshot settings.
* Snapshot Name:Enter Stor1 as the snapshot name.
* Snapshot Technology:SelectSnapVX(or a similar option) as the snapshot technology.
* Secure Snapshot:This is crucial. Look for an option labeled “Secure Snapshot,” “Enable Secure Snap,”
“Secure Snap,” or something similar.Check this option.
* Retention/Expiration:You need to set the retention period for the secure snapshot. This will define how long the snapshot cannot be deleted. There are usually a few ways to configure this:
* Expiration Time:Set an explicit expiration date and time that is two days from now.
* Retention Period:Specify a retention period of 2 days.
* No Expiry:This option is not what we want here. We want the snap to be secure for 2 days.
* Choose the appropriate option to make the snapshot undeletable for two days.
* Other Settings:Review any other available settings. You might be able to choose between creating a new snapshot or linking to an existing one. Select the option to create anew snapshot.
5. Create the Snapshot
* After configuring all the snapshot settings, review them carefully to ensure they are correct.
* Click the button to create the snapshot. This button might be labeled:
* “Run Now”
* “OK”
* “Create”
* “Finish”
6. Verify Snapshot Creation (Optional)
* After the snapshot creation operation completes, you can verify that the snapshot was created successfully:
* Go back to the “StorGroup1” details view.
* Look for a tab or section related to snapshots (e.g., “Snapshots,” “TimeFinder,” “Local Replication”).
* You should see the “Stor1” snapshot listed there, and its status should indicate that it’s a secure snapshot with the correct retention period (2 days).

Step by Step Comprehensive Detailed Explanation:
Before performing an SRDF/S (synchronous) Restore operation, it is crucial tostop all host I/O activityto both the R1 (source) and R2 (target) devices. This ensures data consistency and prevents potential data loss or corruption during the restore process.
Here’s why:
* Data Integrity:An SRDF/S Restore operation involves copying data from the R1 device to the R2 device, overwriting any existing data on R2. If hosts are actively accessing and modifying data on either device during this process, it can lead to inconsistencies and data integrity issues.
* Synchronization:SRDF/S maintains real-time synchronization between the R1 and R2 devices.
1Performing a Restore operation while hosts are writing data can disrupt this synchronization and lead to unpredictable results.
Why other options are incorrect:
* A. Continue accessing the R1 devices. Stop accessing the R2 devices:This would leave R1 vulnerable to data inconsistencies.
* B. Stop accessing the R1 devices. Continue accessing the R2 devices:This would make R2 susceptible to data loss or corruption.
* D. Continue accessing the R1 and R2 devices:This is the most dangerous option, as it would likely lead to data integrity issues.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Solutions Enabler 10.0.0 SRDF Family CLI User Guide:This guide provides detailed information about SRDF operations, including Restore. It emphasizes the importance of halting host I
/O before performing such operations to ensure data consistency. You can find this document on the Dell Support website by searching for “Solutions Enabler SRDF Family CLI User Guide.”
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide may offer general information about SRDF management and best practices, which would include recommendations for performing operations like Restore safely.

Step by Step Comprehensive Detailed Explanation:
The PowerMax 8500 is a high-end storage array designed for enterprise environments with demanding capacity requirements. The maximum capacity per array in a PowerMax 8500 is24 petabytes effective (PBe)
.
This means that after considering data reduction technologies like deduplication and compression, the array can store up to 24 petabytes of usable data.
Why other options are incorrect:
* A. 8 PBe, B. 18 PBe, C. 20 PBe:These values are lower than the actual maximum capacity of the PowerMax 8500.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell PowerMax 8500 Hardware Information Guide:This guide provides detailed technical specifications for the PowerMax 8500, including its maximum capacity. You can find this document on the Dell Support website by searching for “PowerMax 8500 Hardware Information Guide.”
* Dell PowerMax Family: Essentials and Best Practices Guide:This guide offers a general overview of the PowerMax family, including the 8500 model and its key features and capabilities.

See the explanation for step by step solution.
Explanation:
Okay, I understand. We need to perform a system health check and review the compliance status for a PowerMax array with SID ending in 1762 using the Unisphere simulator, then generate and download a compliance report.
Here’s how you would do it in the Unisphere for PowerMax simulator, based on the provided image and common Unisphere functionality:
Steps:
1. Launch the Simulator and Access the System Health View
* Open Unisphere for PowerMax in your web browser.
* You should already be logged in to the simulator, with the PowerMax array with SID 1762.

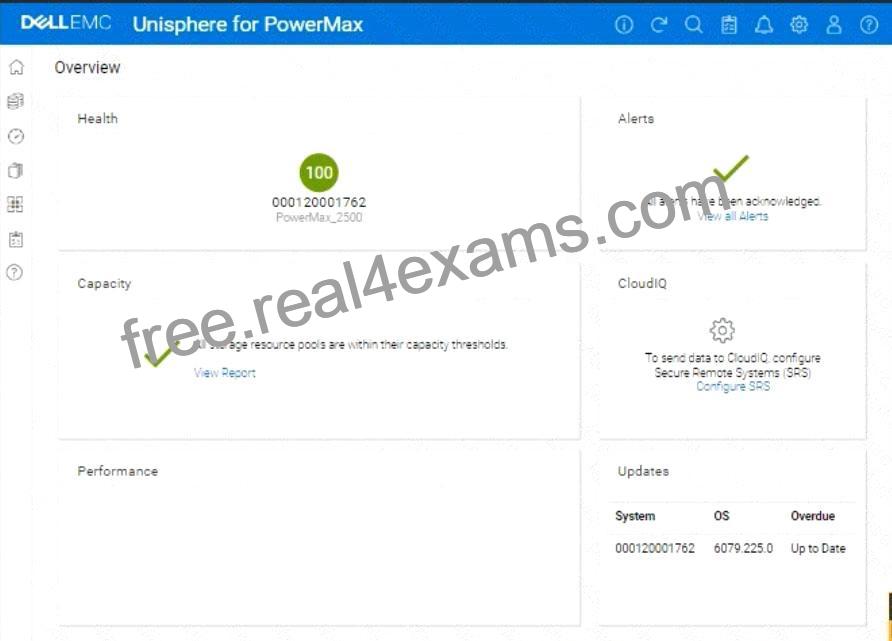

* The initialOverviewpage (as shown in the image) provides a good starting point for a health check.
2. Analyze the Overview Page
* Health:The “Health” section displays the overall health status of the array. In the image, it shows “100” with a green checkmark, which indicates that the array is currently healthy.
* Alerts:The “Alerts” section will show if there are any active alerts. In the image, it shows a green checkmark and “All alerts have been acknowledged,” meaning no unacknowledged alerts. You can click “View all Alerts” to see the alert history.
* Capacity:The “Capacity” section indicates whether storage resource pools are within their capacity thresholds. The green checkmark and “All storage resource pools are within their capacity thresholds” message indicate that capacity is currently healthy. You can click “View Report” for more details.
* Performance:The “Performance” section is not detailed in the image, but it would typically provide a quick overview of the array’s performance.
* Updates:The “Updates” section shows the system’s PowerMaxOS code level and whether any updates are overdue. In the image, it shows that the system is “Up to Date.”
3. Navigate to the Compliance Section
* In the left-hand navigation pane, click onData Protectionto expand it.
* Click onComplianceunder Data Protection.
4. Review Compliance Status
* The Compliance view will show you the overall compliance status of your storage groups against the defined compliance policies.
* Review the compliance status for each Storage Group.
* Look for any storage groups that are marked as “Non-Compliant.”
5. Generate the Compliance Report
* Click on”Generate Report”(or a similarly worded button) within the Compliance view. This might also be represented as an icon in the simulator.
* Select all Storage GroupsSince we need to generate the report for all storage groups.
* Report Format:Choose the desired report format. Common options are usually PDF, CSV, or HTML.
For this simulation, let’s assume PDF is available and select it.
* Download the Report:Once the report is generated, there will typically be a”Download”or similar option to save the report to your local system. Click it to download the compliance report.
6. Further Health Checks (Optional):
* Detailed Performance Metrics:You can navigate to thePerformancesection in the left navigation pane (under “Dashboard”) to view more detailed performance metrics for various components of the array.
* Hardware Status:You can typically find a “Hardware” section (or similarly named section) that provides information about the physical components of the array (e.g., DAEs, directors, ports).

The storsrvd daemon is a critical component of the Solutions Enabler (SYMCLI) software suite used to manage Dell PowerMax and VMAX storage arrays. Its primary function is to:
* Listen for SYMAPI Sessions:It acts as a communication endpoint, listening for incoming SYMAPI sessions from clients or management tools like Unisphere.
* Handle Management Requests:When a client connects, storsrvd receives and processes SYMAPI commands and requests, forwarding them to the appropriate components within Solutions Enabler for execution.
Essentially, storsrvd acts as an intermediary between SYMCLI clients and the storage array, facilitating communication and management operations.
Why other options are incorrect:
* A. Manages Composite Groups and Device Groups:This is handled by other components within Solutions Enabler.
* B. Provides centralized gatekeeper device management:While storsrvd plays a role in device management, it’s not the sole component responsible for it.
* C. Provides replication consistency protection:This is a function of SRDF (Symmetrix Remote Data Facility) and related components.
References and documents of Dell’s public documentation for PowerMax Operate v.2:
* Dell Solutions Enabler 10.0.0 CLI User Guide:This guide provides information about the architecture and components of Solutions Enabler, including the role of the storsrvd daemon in handling SYMAPI communication. You can find this document on the Dell Support website by searching for “Solutions Enabler CLI User Guide.”

Explanation:

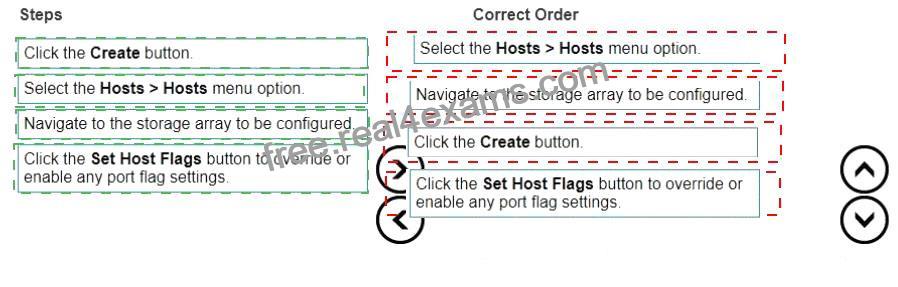

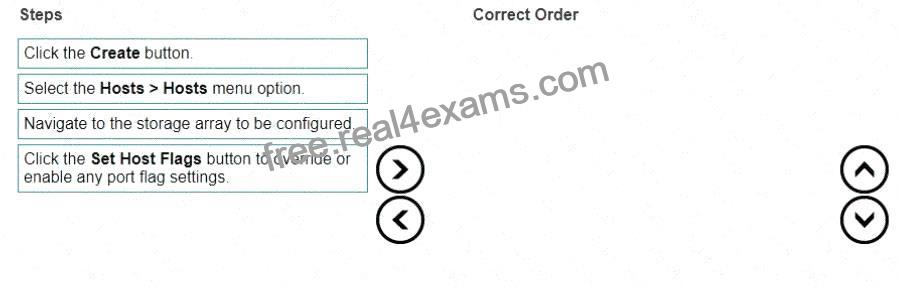

Here’s the correct sequence of actions, along with explanations:
Correct Order:
* Select the Hosts > Hosts menu option.
* Why:This is the initial navigation step within Unisphere. You need to go to the “Hosts” section where you can manage and configure host connections to the PowerMax array.
* Navigate to the storage array to be configured.
* Why:In an environment with multiple PowerMax arrays, you need to select the specific array for which you want to configure host settings.
* Click the Create button.
* Why:This initiates the “Create Host” wizard, which will guide you through the process of adding a new host and configuring its settings, including the host flags.
* Click the Set Host Flags button to override or enable any port flag settings.
* Why:Within the Create Host wizard, you’ll reach a point where you can configure host flags.
Clicking the “Set Host Flags” button allows you to modify these flags.
* Host Flags:These flags are settings that define how the PowerMax array interacts with the host.
They control things like:
* SCSI support:Different variations of SCSI protocols.
* High availability:Features like auto-negotiation of failover.
* Other host-specific behaviors.
* Select the Hosts > Hosts menu option.
* Navigate to the storage array to be configured.
* Click the Create button.
* Click the Set Host Flags button to override or enable any port flag settings.
